Prophet 5/10 Analog Board Supply Bus Strips

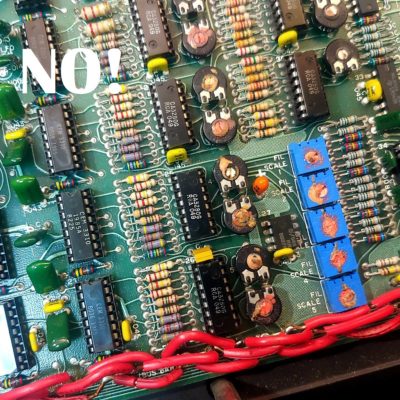

The analog board/ voice boards of vintage Sequential Circuits Prophet 5 and 10 synthesizers use long, delicate supply bus strips mounted along the edge of the board to distribute the supply voltages to all of the circuits. Unfortunately, we’ve seen these fail many times, and we’ve also seen many poor attempts to replace them, and executed the tedious process of doing it ourselves with wire too.

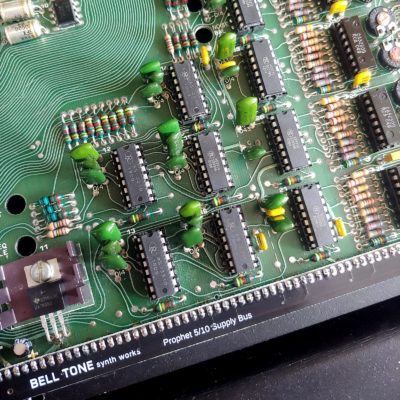

So we’ve made these supply bus strips: custom PCBs which are a drop-in replacement for this part in the Prophet 5 and 10.

Assembly simply consists of soldering the provided pin headers into our bus strip board and breaking off the unneeded pins before soldering them into the Prophet board.

Each set comes with two bus strip PCBs (they will go side by side on one board) and six 36-pin header strips.


Additional information

Weight 2 oz
Dimensions 10 × 2 × 1 in
Synth / configuration

Prophet 5 or one Prophet 10 voice board (2 bus strips), Prophet 10 both voice boards (4 bus strips)
