Yamaha CS-15

Yamaha CS-15

$1,250.00 USD
$1,250.00 USD

Contact us at 267-683-5442 or belltonesynthworks@gmail.com if you are interested in buying or would like to arrange to try it in the shop!

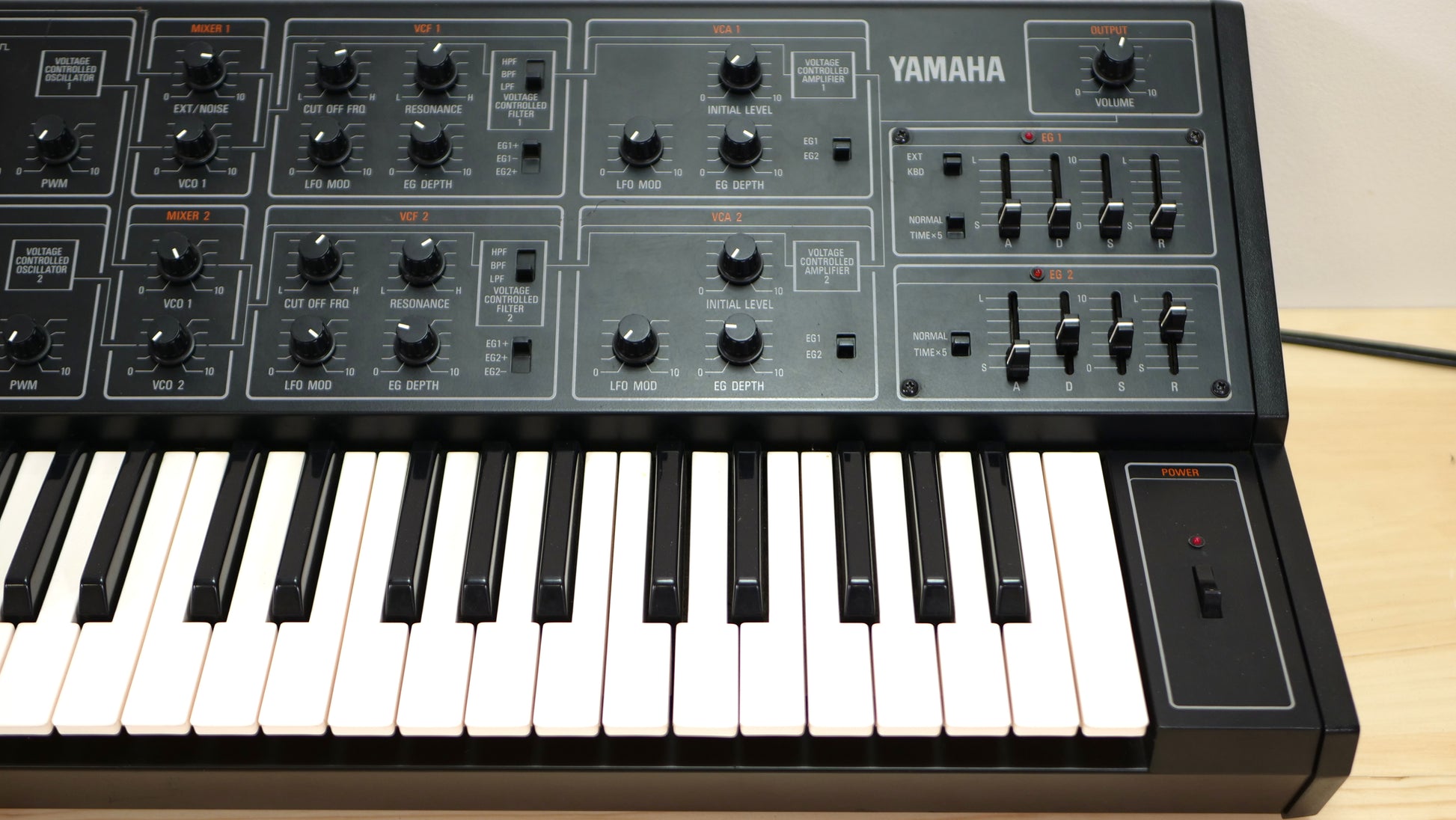

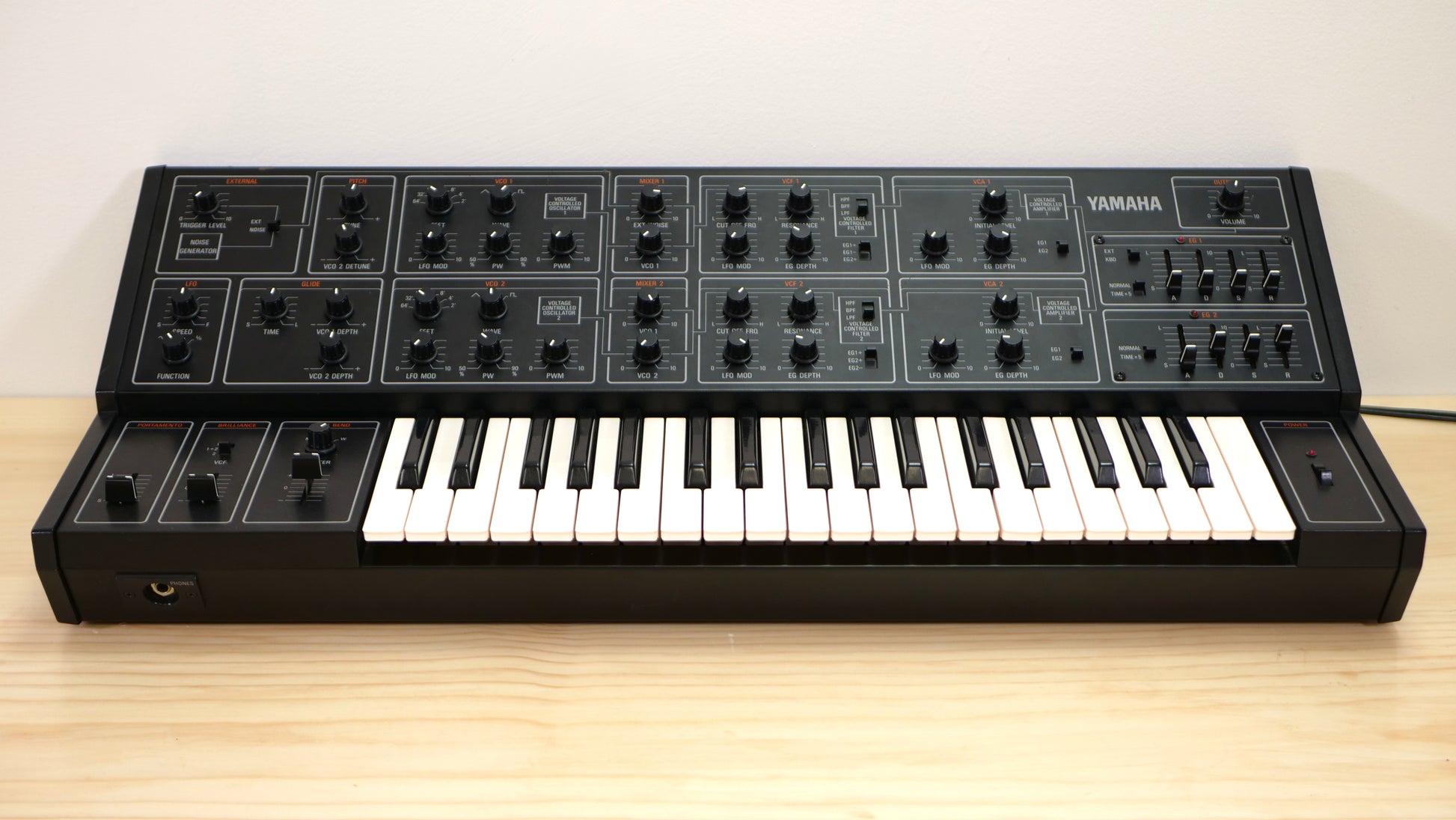

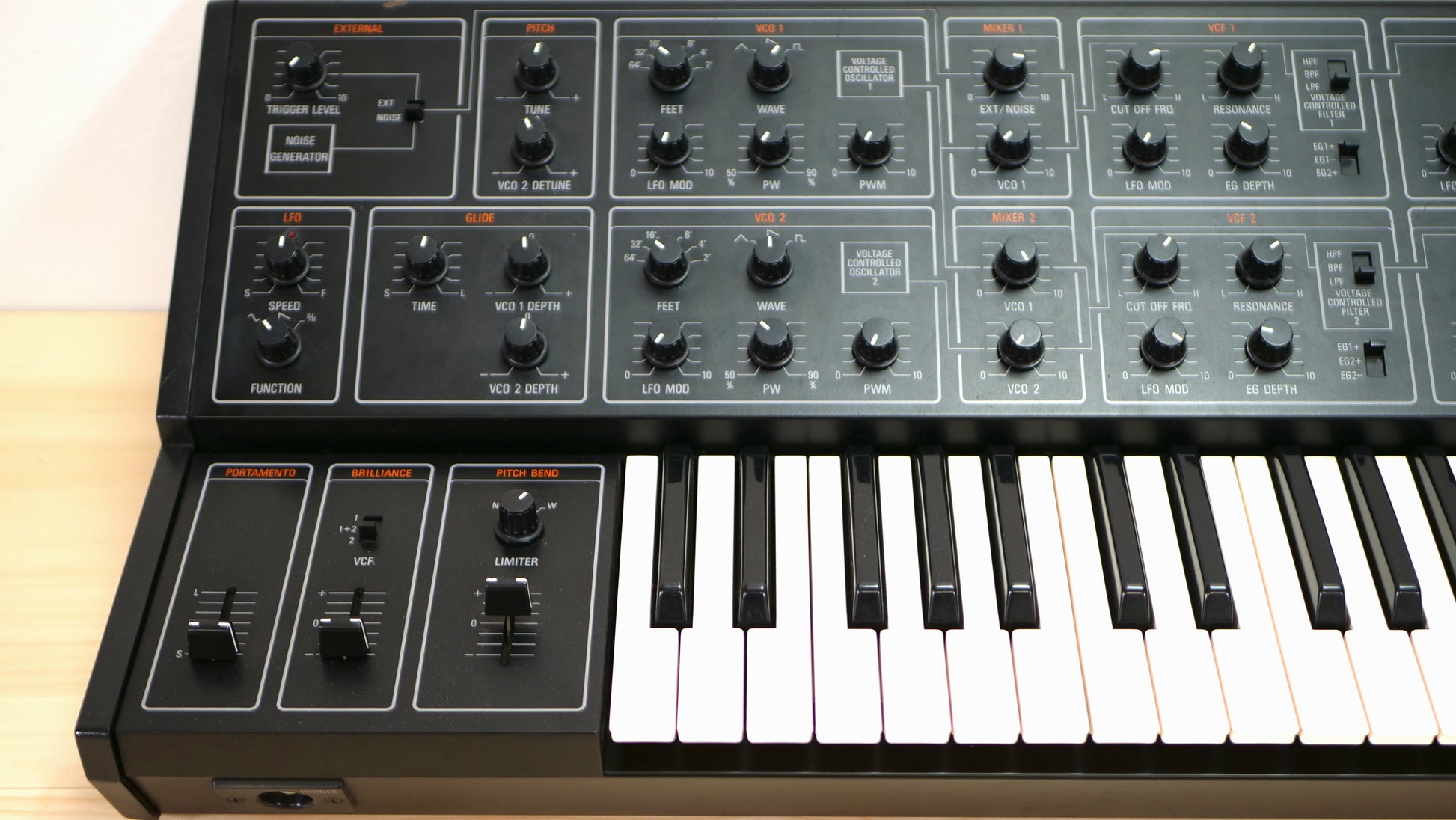

The CS-15 is a really cool and underrated monosynth that offers more than you might think at first glance! It has two oscillators, two VCA channels with separate envelopes, and TWO multimode filters! To get even more out of this architecture, we have modified this unit to have individual outputs for each VCA , so that with the help of the built-in external input in the VCF 1 mixer, you can set up a variety of feedback and series/parallel filter configurations.

View full details

CONDITION / SERVICE DETAILS

We believe in transparency when selling “pro serviced” synths so always include documentation of what services every synth we sell has received. Our approach to servicing vintage instruments entails both making sure every synth is working 100% now, and eliminating common failure points to preempt future issues.

This unit received the following services while it was here with us:

  • Power transformer replaced to run safely on US mains voltage, power supply regulator and capacitors replaced
  • Polarized capacitors replaced
  • Cleaned all sliders, pots, and switches
  • Cleaned key contacts
  • Calibrated to factory specifications

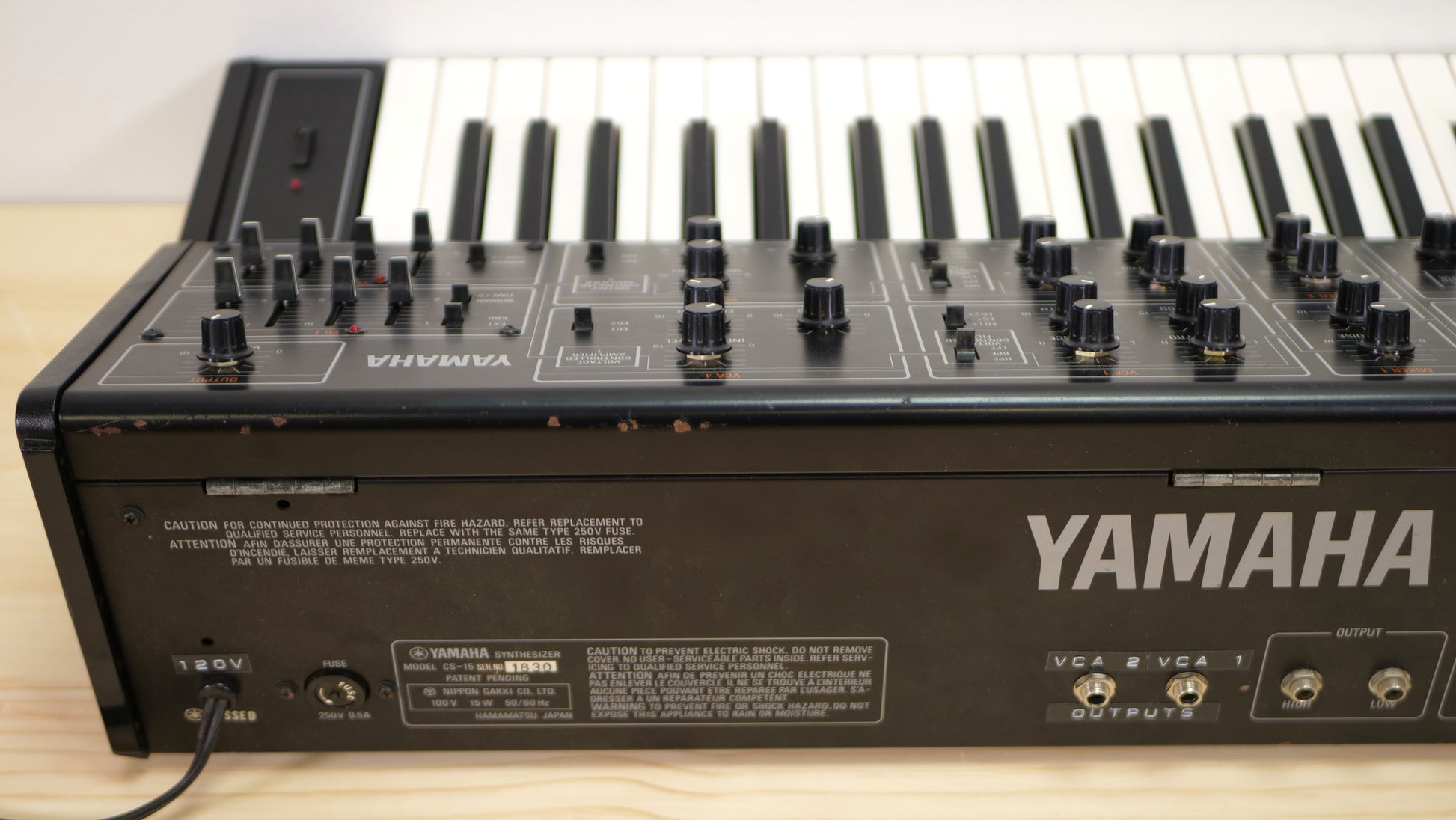

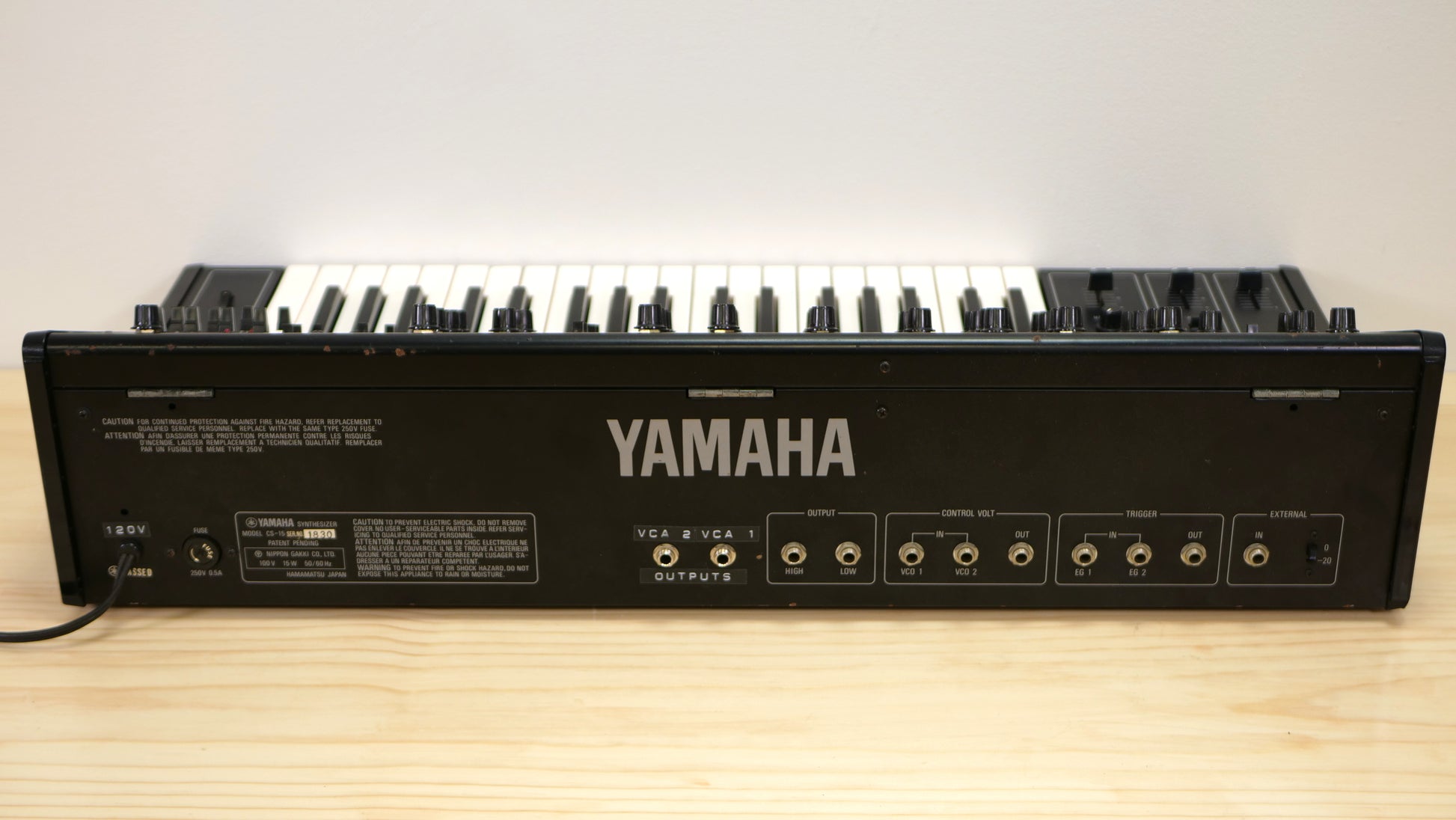

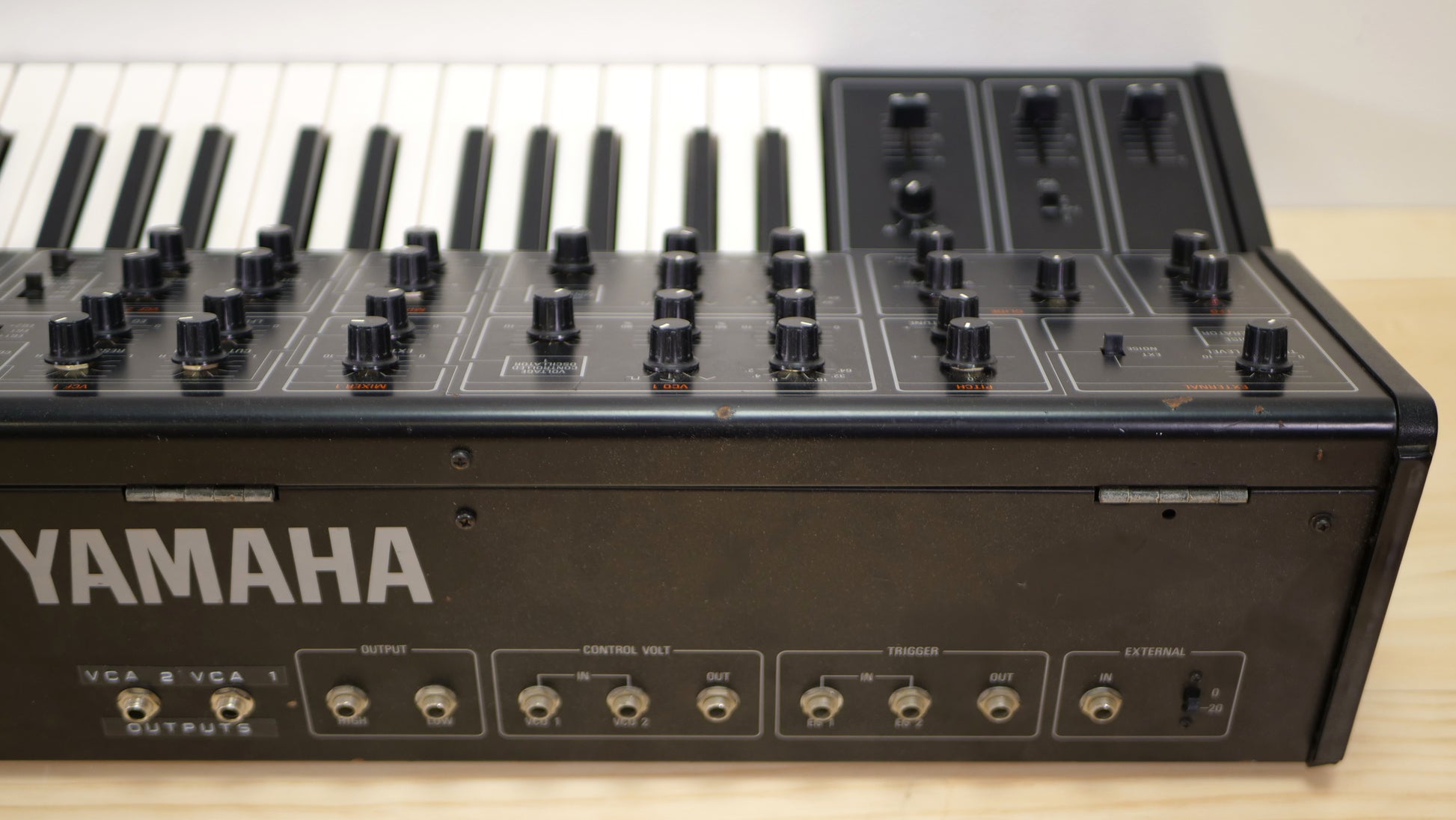

  • Buffered individual VCA output jacks added
